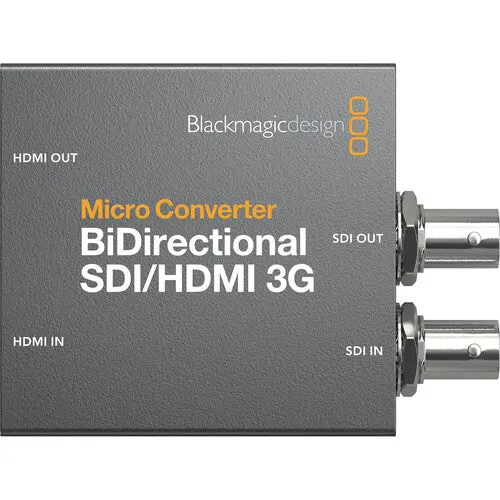

BLACKMAGIC BIDIRECT SDI/HDMI MICRO CONVERTER 3G W/ PSU
- Samtidig SDI til HDMI & HDMI til SDI
- 1 x SD/HD/3G-SDI & 1 x HDMI Input/Output
- Understøtter op til DCI 2K60 Video
- BMPCC Control & Tally via SDI Switcher
- USB Power/SDI Re-Clocking/HDMI-tidskode
- Automatisk registrering af inputsignaler
- Indbygget HDMI & SDI Input/Output
- LED-video- og strømsignalindikatorer
- AC strømforsyning og stikkontakter
###split###
Kombiner nemt SDI- og HDMI-komponenter i din videoopsætning med Micro Converter BiDirectional SDI/HDMI 3G fra Blackmagic Design.
Denne kompakte tovejskonverter kan samtidig konvertere SDI til HDMI og omvendt, selv når der bruges forskellige standarder, og den understøtter opløsninger op til DCI 2K i SDI og 1080p60 i HDMI.
Det tilbyder også kamerakontrolkonvertering til Blackmagic HDMI-kameraer som BMPCC 4K eller 6K, så du kan bruge dem med en SDI-baseret live switcher.
Micro Converter BiDirectional SDI/HDMI 3G har HDMI-tidskode-understøttelse, SDI-re-clocking for stabilitet over lange kabelkørsler, understøttelse af en bred vifte af pro-udsendelsesopløsninger, herunder film-stil 48 fps, og både HDMI- og SDI-indlejret lydindgang og -output .
Denne konverter i lommestørrelse har et robust metalhus med strøm- og signal LED-statusindikatorer og robuste stikgrænseflader.
En USB Type-C-port gør det muligt for BiDirectional SDI/HDMI-konverteren nemt at forbinde til og drives af storskærmsskærme, bærbare computere, stationære computere eller projektorer.
Du kan også forsyne denne konverter med den medfølgende 100-240 VAC strømforsyning, komplet med fire internationale stikadaptere.
Compact, Rugged Design
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or PC
HDMI Camera Control
- Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher
SDI & HDMI Timecode
- HD and SD timecode support
- Converts HDMI timecode to SDI and vice versa
SDI Re-Clocking
- Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI 2Kp60
- HDMI support from NTSC and PAL up to 1080p60
Embedded Audio
- Supports embedded SDI and HDMI input and output
LED Indicators
- LED indicators for video and power signals
Versatile Power Options
- Power from a monitor, laptop, or other component using the USB Type-C port
- Includes a 100-240 VAC power supply with four socket adapters
###split###
| Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0) |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL: 25 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | HDMI SDI |
Output
| Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0) |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 29.97 fps PAL (768 x 576): 25 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | HDMI SDI |
Standards
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | Version 2.2 |
Connectivity
| Other I/O | 1 x USB Type-C Input |
| Expansion Slots | None |
Hardware
| Tally Light | Yes |
| OS Compatibility | macOS 10.14.15 or Later Windows 10 |
Power
| Power Connector | 1 x USB Type-C (4.4 to 5.2 VDC) Input |
| Power Consumption | 2.5 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
General
| Dimensions | 3.18 x 2.32 x 0.98″ / 80.77 x 58.93 x 24.89 mm |
| Weight | 6.13 oz / 174 g |
| Warranty Length | Limited 1-Year Warranty |
